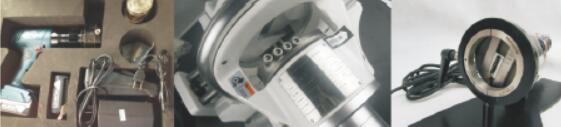

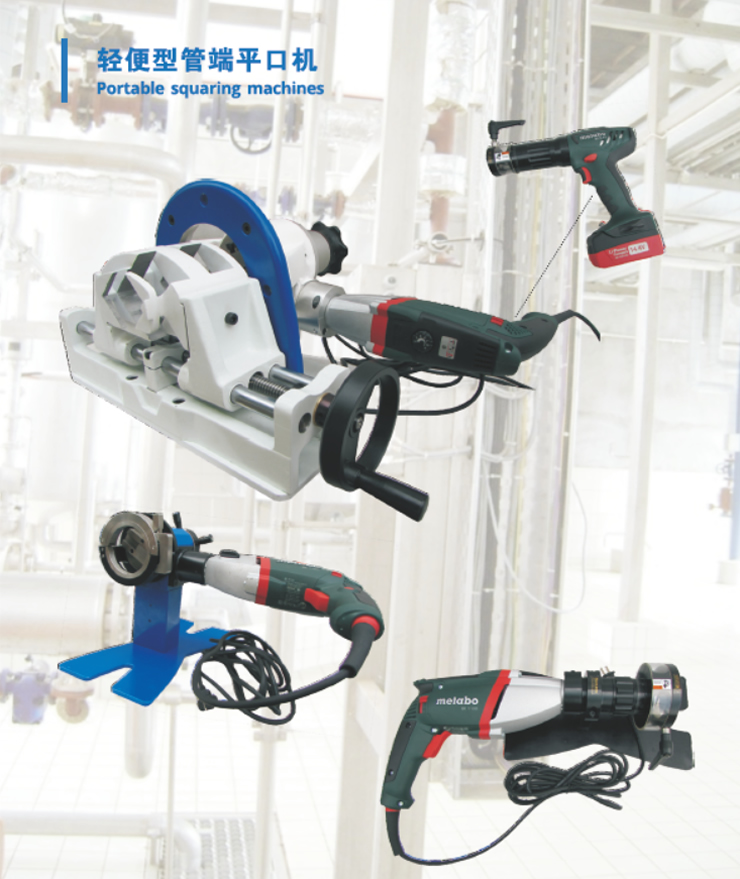

This series is an inner diameter installation type flat mouth machine, which is lightweight, easy to carry, easy to install, fast, and has the characteristics of automatic positioning and centering when inserting the expansion mechanism into the inner diameter of the tube.
This machine is capable of processing flat end pipes made of carbon steel, stainless steel, alloy steel, and other materials, as well as processing raised face flanges after welding.
Dual power, electric type: driven by a high-performance motor with a power of 1-2.5 kW, pneumatic type: driven by a pneumatic motor with an air working pressure of 1-2.5 Kp, does not generate sparks during operation, suitable for flammable, explosive and other working environments

advantage
Good quality of flat mouth, fast speed, simple assembly and disassembly operation, easy to align, high cutting force, wide processing range
The cutting amount can be fine tuned and can automatically feed the tool
Using a forming knife for pipe end processing, the processing wall thickness is large and the speed is fast
Small size, beautiful appearance, simple operation, high precision, and good performance
Blade installation or adjustment only takes a few seconds


characteristic:
1: After flat processing, the end face has no burrs and is 100% perpendicular to the pipe axis.
2: Exquisite structure, convenient clamping of fixtures, cutting tools, and pipes, and simple operation. Small size and light weight, suitable for any workplace
3: Suitable for flat end machining of any ultra pure thin-walled stainless steel pipe.
4: Suitable for double-edged cutting tools with special coatings, ensuring high-precision end face machining quality, long service life, and low wear and tear. Simultaneously capable of groove processing
5: The use of millimeter scale feed devices can achieve high-precision end face quality.
6: The clamping methods are divided into external enclosed clamping and double V-groove clamping.


型号

管径范围

加工管径壁厚

电压

重量

外形尺寸

XF1.0

3mm-25.4mm

0.5-3mm

14.4V

2.3KG

300*250*85mm

1/8inch-1inch

110/220V

4.8KG

500*280*180mm

XF1.5

3-38.1mm

0.5-3mm

14.4V

2.5KG

300*250*85mm

1/8inch-1.5inch

110/220V

5.1KG

500*280*180mm

XF2.0

6-50.8mm

0.5-3mm

14.4V

2.8KG

300*250*90mm

1/4inch-2.0inch

110/220V

5.3KG

500*280*200mm

XF2.5

9-63.5mm

0.5-3mm

14.4V

3.2KG

300*250*100mm

3/8inch-2.5inch

110/220V

5.4KG

500*280*200mm

XF3.0

12.7-76.2mm

0.5-5mm

110/220V

9.5

400*320*240mm

XF4.5

12.7-114.3mm

0.5-5mm

110/220V

19KG

550*300*260mm

XFA4.5

12.7-114.3mm

1-5mm

110/220V

29KG

570*400*270mm
